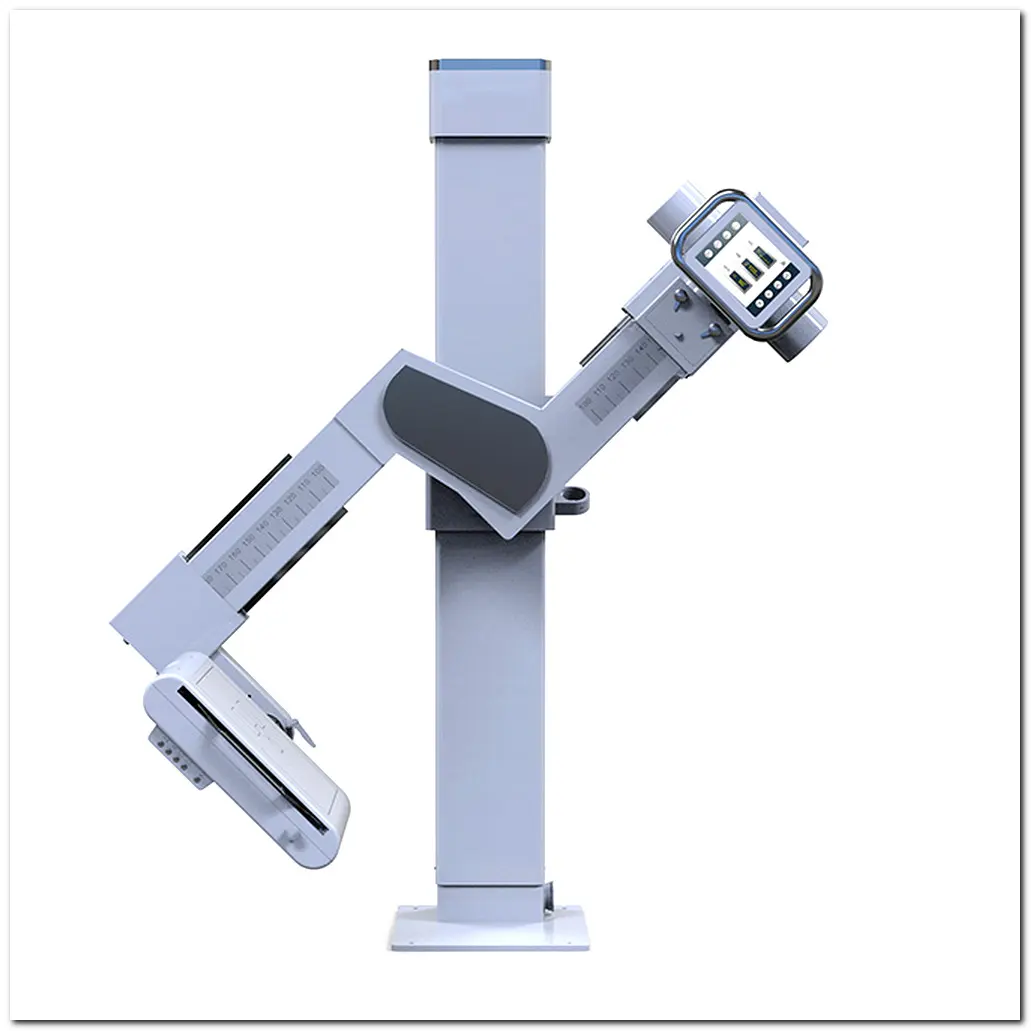

What Sets the DR Digital X-Ray Machine MKHX30 Apart?
The DR Digital X-Ray Machine MKHX30 is engineered with cutting-edge technology to revolutionize the way medical imaging is conducted. Here’s what makes it stand out:
1. Advanced Imaging Technology: Equipped with a high-frequency high-voltage generator and an amorphous silicon flat-panel detector, the MKHX30 delivers exceptional image quality with over 9 million effective pixels and a spatial resolution of at least 3.7 Lp/mm.
2. Enhanced Workflow: With a more intuitive user interface and optimized workflow, radiologists can streamline their processes, leading to quicker diagnoses and improved patient outcomes.
3. Modular Design: The MKHX30 features a modular design that facilitates easy maintenance, reducing downtime and operational costs for healthcare facilities.
4. DICOM 3.0 Compatibility: Ensuring seamless integration with existing healthcare systems, the MKHX30 is DICOM 3.0 compatible, allowing for efficient image transfer and management.
Technical Specifications
Here’s a detailed look at the technical specifications of the DR Digital X-Ray Machine MKHX30:
| Serial Number | Main Technical Specifications |
|---|
| 1 | Flat Panel Detector |
| 1.1 Amorphous silicon flat panel detector |
| 1.2 Effective pixels: ≥9 million |
| 1.3 Pixel matrix: ≥3070*3070 pixels |
| 1.4 Quantization depth: ≥16 bit |
| 1.5 Effective area: 17”*17” |
| 1.6 Spatial resolution: ≥3.7 Lp/mm |
| 1.7 Imaging time: ≤7s |
| 2 | Mechanical Structure: Scythe Arm (Type Z) |
| 2.1 Vertical range (scythe arm): 600mm – 1600mm (±5%) |
| 2.2 Rotation range of the scythe arm: -45° to +135° (±2°) |
| 2.3 SID (vertical and horizontal) electronically adjustable range: 1000mm – 1800mm (±5%) |
| 2.4 Rotation range of the tube assembly: -15° to +15° (±2°) |
| 2.5 Rotation range of the detector: -45° to +45° (±2°) |
| 2.6 Independent movement control of the detector end |
| 2.7 9.5″ LCD touch screen |
| 2.8 Minimum equipment room height: 2.4m |
| 2.9 Synchronous movement of tube and detector for balance |
| 3 | High Voltage Generator |
| 3.1 Smart network voltage real-time monitoring system |
| 3.2 Power: ≥50kW |
| 3.3 kV range: 40kV – 150kV |
| 3.4 mA range: 10mA – 630mA |
| 3.5 mAs range: 0.1mAs – 630mAs |
| 3.6 Maximum operating frequency: 200kHz |
| 4 | X-ray Tube |
| 4.1 Focus size: ≤0.6mm/1.2mm |
| 4.2 Focus power: Small focus: ≥20kW, Large focus: ≥50kW |
| 4.3 Maximum heat capacity: ≥300kHU |
| 4.4 Maximum peak voltage: ≥150kV |
| 5 | Filter Grid |
| 5.1 Ratio: ≥10:1 |
| 5.2 Density: ≥40L/CM |
| 6 | LED Collimator |
| 6.1 Indicator time limit: 30±3s |
| 6.2 Inherent filtration: 1.0 mm Al.EQ. |
| 7 | Workstation |
| 7.1 DELL 5040MT, Intel Pentium G4400 processor, 4G/500G/DVDRW/WIN10, E2216H 21.5 inch high contrast display |
Packaging and Delivery
The DR Digital X-Ray Machine MKHX30 is packaged securely to ensure safe transportation and arrives within 7-10 workdays after receipt of payment. The standard export package safeguards the equipment during transit, while the prompt delivery ensures minimal disruption to medical operations.
Pricing and Payment Terms
The price of the DR Digital X-Ray Machine MKHX30 reflects its advanced technology and unparalleled performance. MONKON offers flexible payment terms, including T/T, L/C, D/A, D/P, Western Union, MoneyGram, and PayPal, making it convenient for healthcare providers to acquire this essential diagnostic tool.
FAQs
1. Is the DR Digital X-Ray Machine MKHX30 suitable for small healthcare facilities? Absolutely! The MKHX30’s compact design makes it suitable for facilities of all sizes, from small clinics to large hospitals.
2. Can the MKHX30 integrate with existing PACS systems? Yes, the MKHX30 is DICOM 3.0 compatible, ensuring seamless integration with PACS and other healthcare IT systems.
3. What warranty does MONKON offer for the MKHX30? MONKON provides a one-year hardware warranty for the MKHX30, ensuring peace of mind for healthcare providers.
4. Does MONKON offer training and support for the MKHX30? Yes, MONKON offers comprehensive training and ongoing support to ensure healthcare professionals can maximize the benefits of the MKHX30.
5. Is the MKHX30 available for OEM customization? Yes, MONKON offers OEM customization options for the MKHX30, allowing healthcare providers to tailor the equipment to their specific needs.
DR Digital X-Ray Machine MKHX30 by MONKON represents the pinnacle of digital radiography technology. With its advanced imaging capabilities, user-friendly interface, and seamless integration, it’s a must-have tool for modern healthcare facilities. Contact MONKON today to learn more about how the MKHX30 can enhance your diagnostic capabilities.
